FULL DESCRIPTION of Item 155443

in Reverse Osmosis and Ultra Filters
Item ID: 155443

Offered1 Offered at $ 5,000.00


CSK Ultrapure Reverse Osmosis System

THIS IS A DEMONSTRATION LISTING ONLY: NOT FOR SALE

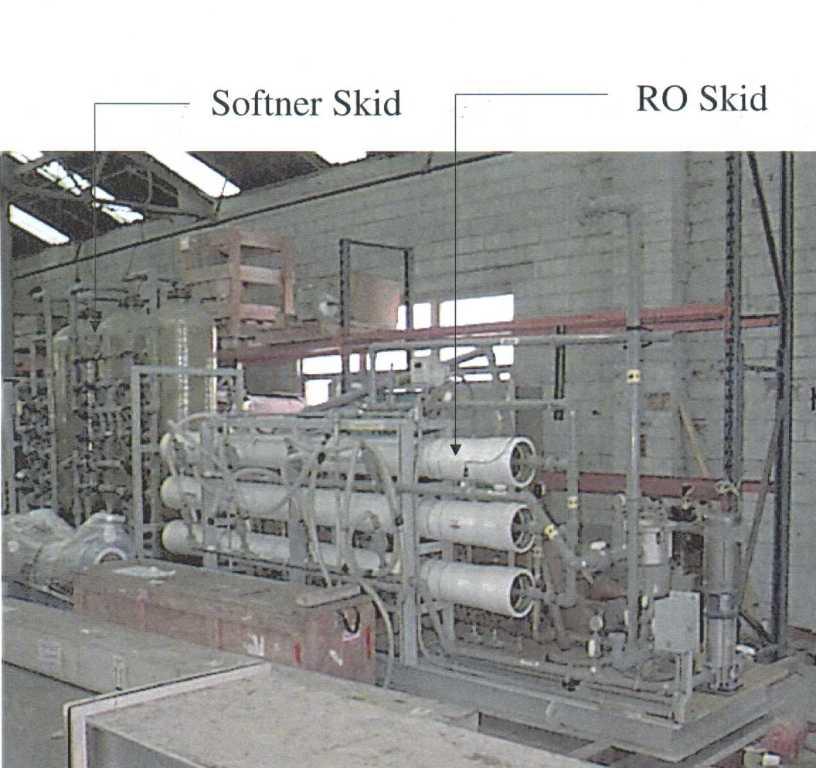

The system is a CSK Ultrapure Water System. This system was designed to produce 30 GPM of ASTM Type I water. Major components include: Multi Media Unit ASME Stamped, P/N N5240-30, Tag # MM-100, Tank Size 30" x 72" Manufacturer: Alamo Twin Water Softener:P/N 4059T1, Model A450FM-29T1, Tag # WS-100, Tank Size 2 ea. 30" x 72" Manufacturer: Alamo RO Pressure Vessels ASME Stamped, P/N E8L/SP3, Tag # RO-200, RO-201, RO-202, 3 ea. 8.5" OD x 338" Manufacturer: Codeline Spiral Wound RO Elements: P/N 8822HR, RO-200, RO-201, RO-202 Manufacturer: TFC RO Booster Pump: P/N 35VD1K5HO, Tag #P-200, stainless steel vertical, 5 HP, 55 GPM nominal flow Manufacturer: G&L DI Pump: P/N 2SVD1H5HO, Tag # P-201, stainless steel vertical, 5 HP 25 GPM nominal flow Manufacturer: G&L Electrical: 2 ea. panels for PLC control. One on the RO Skid and one on the Softener skid.
CSK Ultrapure Reverse Osmosis System
  Click to see additional image(s)... other image

Location: Edgewater, NJ
Unit Price $ 5,000.00
Number of Units 1
Manufacturer CSK
Model 630H
Throughput 30.00  GPM  (114.02 l/m)
Filtration Surface Area 325.00  sq ft  (30.19 sq m)
Number of Internals/Plates 6
Internal Material of Construction (Wetted Surface) Stainless Steel
Shell Material Ceramic
Operating Characteristics
  Maximum Allowable Working Pressure 500.00  PSI  (34.48 bar)
  Minimum Temperature 0  ºC  (32 ºF, 273.00 ºK)
  Maximum Temperature 50  ºC  (122 ºF, 323 ºK)
Shape Cylindrical
Orientation of Use Horizontal
Inlet(s)
  # Inlets 2
  Diameter 1.969  in  (5.0 cm)
Outlet(s)
  # Outlets 2
  Diameter 1.969  in  (5.0 cm)
Year of Manufacture 1989
Condition Good
Power Requirements 120/240 V     10.0 A     50/60 Hz     3 Phase
Other Information THIS IS A DEMO LISTING ONLY: DO NOT RESPOND TO THIS!
Weight 725  lb  (329 kg)
