ITEM ID: 159005

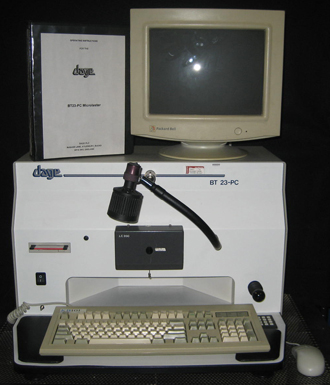

Dage BT23PC

Die Shear Tester

1 unit @ Best Price

MAKE: Dage Precision

MODEL: BT23PC

CATEGORY: Die Shear Testers

SELLER: Catalyst Equipmt Co

Plano, TX US

SPECS

Manufacturer Dage Precision
Model BT23PC
Description Die Shear Tester
Other Information
  • Shear Tester for Ball Bonds and Tab Bump
  • LC200 Load Cell
  • Destruct/Non-Destruct Testing
  • 2.0mm (0.08in) X-Axis Travel
  • 0.15mm (0.006in) tip width – Shear Tool Size
  • 3 to 7g (0.107 to 0.25ozf) Tool Landing Force
  • 0.5mm (0.02in) full scale – Load Beam Deflection
  • X-Axis – left to right, Shear Test Direction
Condition Excellent
Year of Manufacture 1995

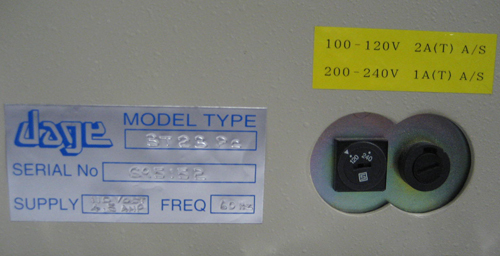

Power Requirements 110 V 4.5 A 60 Hz

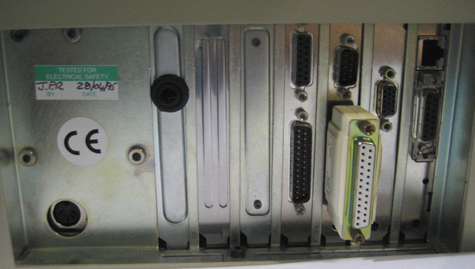

CE Marked YES
