Muegge Gerling GA1232A 15kW Compact Microwave Dummy Load

  • Creatively designed, compact, dummy load offers high power capacity for its size.

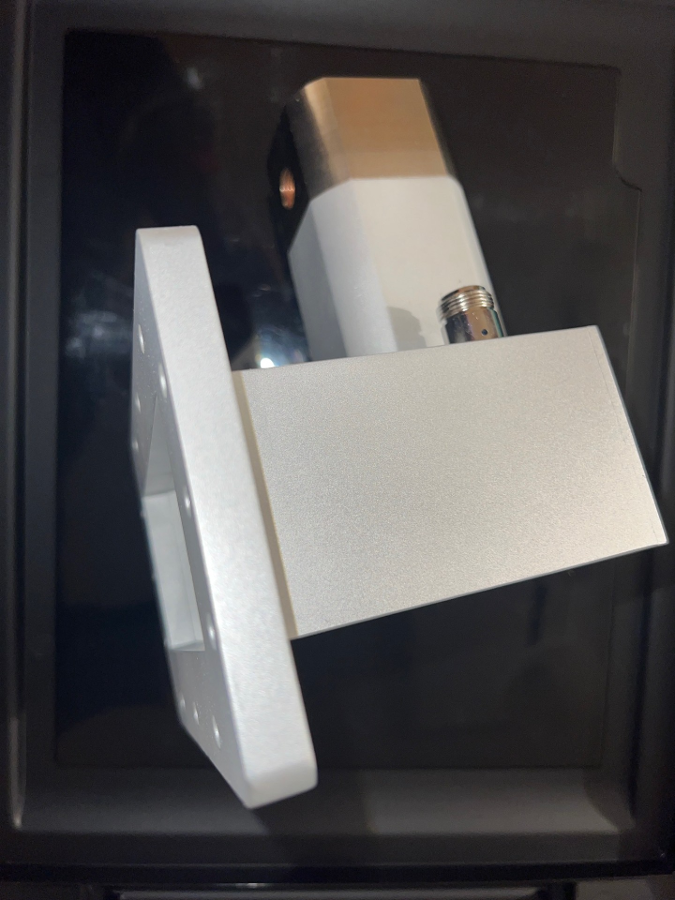

  • This is an aluminum WR430 rectangular waveguide component engineered to handle up to 15kW of microwave power.
  • Plated brass water cooling section with 1/4" female threaded water-cooling ports.
  • Equipped with single directional coupler (nominally 60dB) with N-type power measurement connection.
  • Detailed photos available upon request.

2 units @ Best Price each

MAKE: Muegge

MODEL: GA1232A

CATEGORY: Other Plasma Processing Equipment and Tools

SELLER: Cline Innovations

Leominster, MA US

SPECS

Manufacturer Muegge
Model GA1232A
Description 15,000 Watt WR430 Microwave Dummy Load
Accessories
  • Adaptor flanges may be available upon request.
  • One WR430 to WR284 adaptor flange is available as of 8/21/2025.
Other Information
  • Manuafacturers product webpage with stock photo: Wasserlast - GA1232A - Muegge
  • General Specifications of the 15kW Dummy Load include:
    • Frequency: 2450 MHz nominal.
    • Input Power:15 kW continuous max.
    • Waveguide: WR430 (RG105/U)

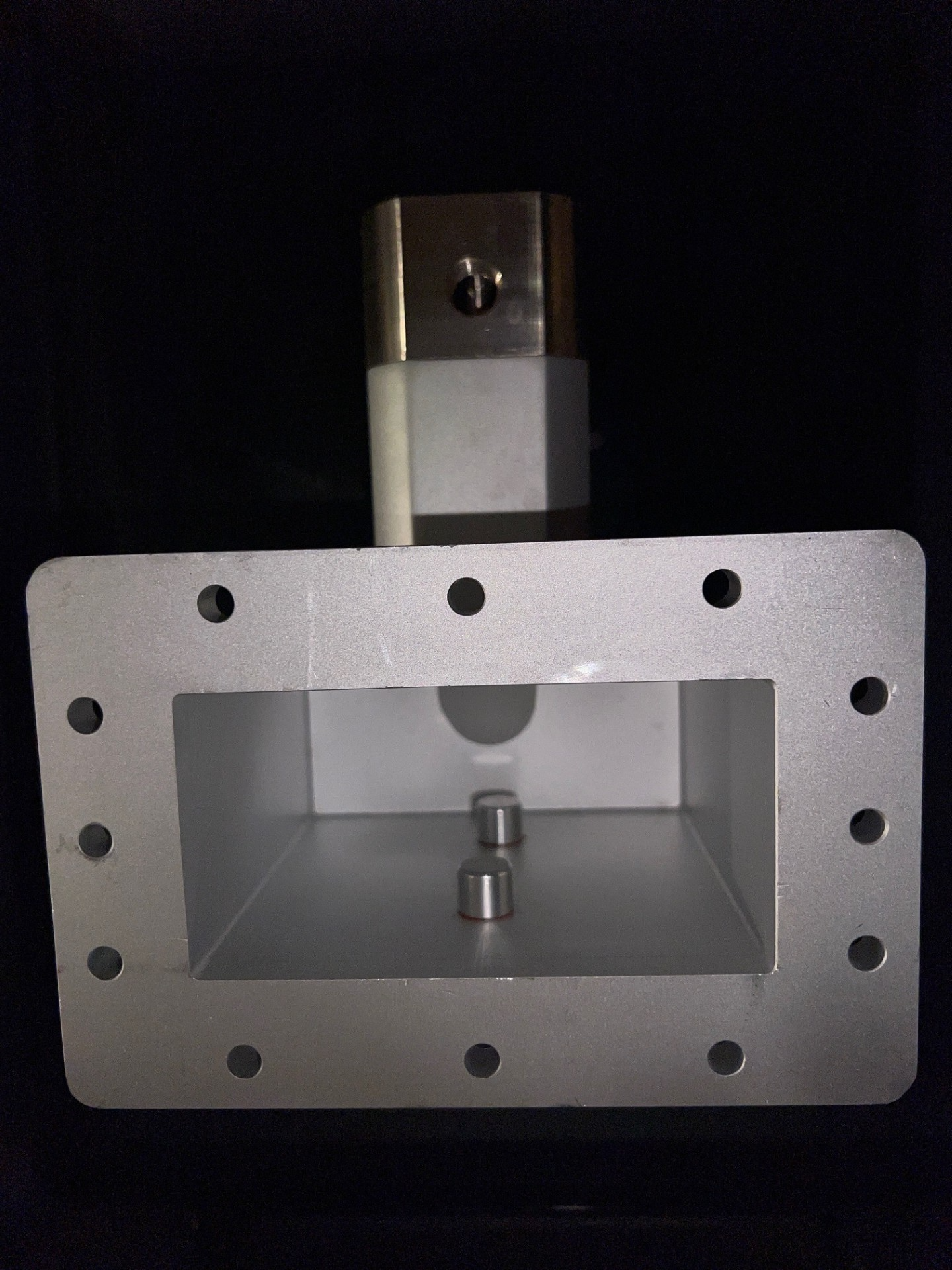

    • Input Flange: CPR430 (UG1711/U)
    • Return Loss: 20 dB minimum @ 2450 MHz.
    • Coupler Probe: Type N Female.

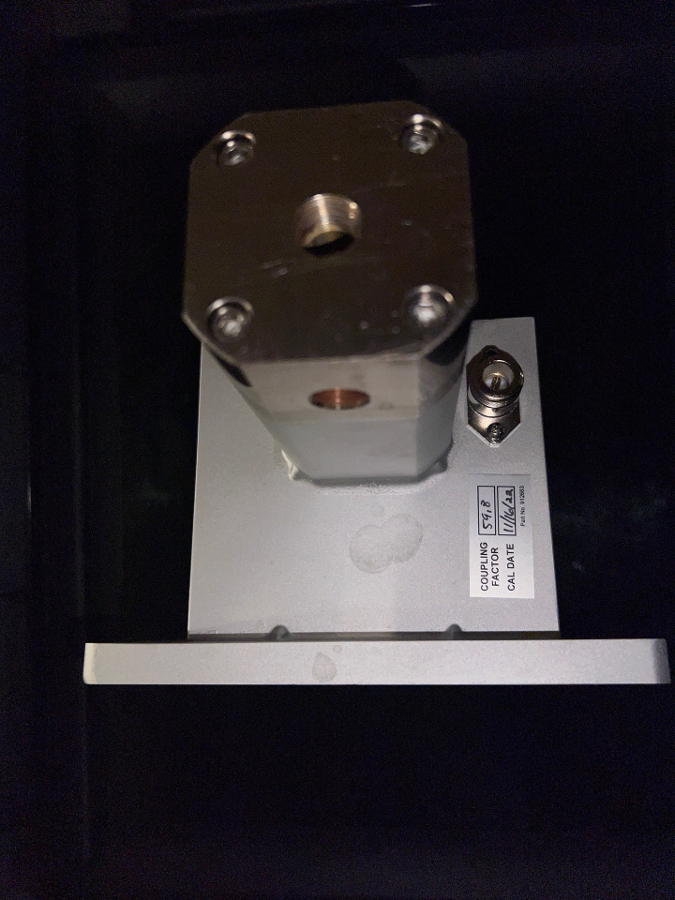

    • Coupling Factor: 60 dB +/- 1 dB
    • Water Flow Requirements: 1 lpm per kW input power, 70 psi max. inlet pressure.

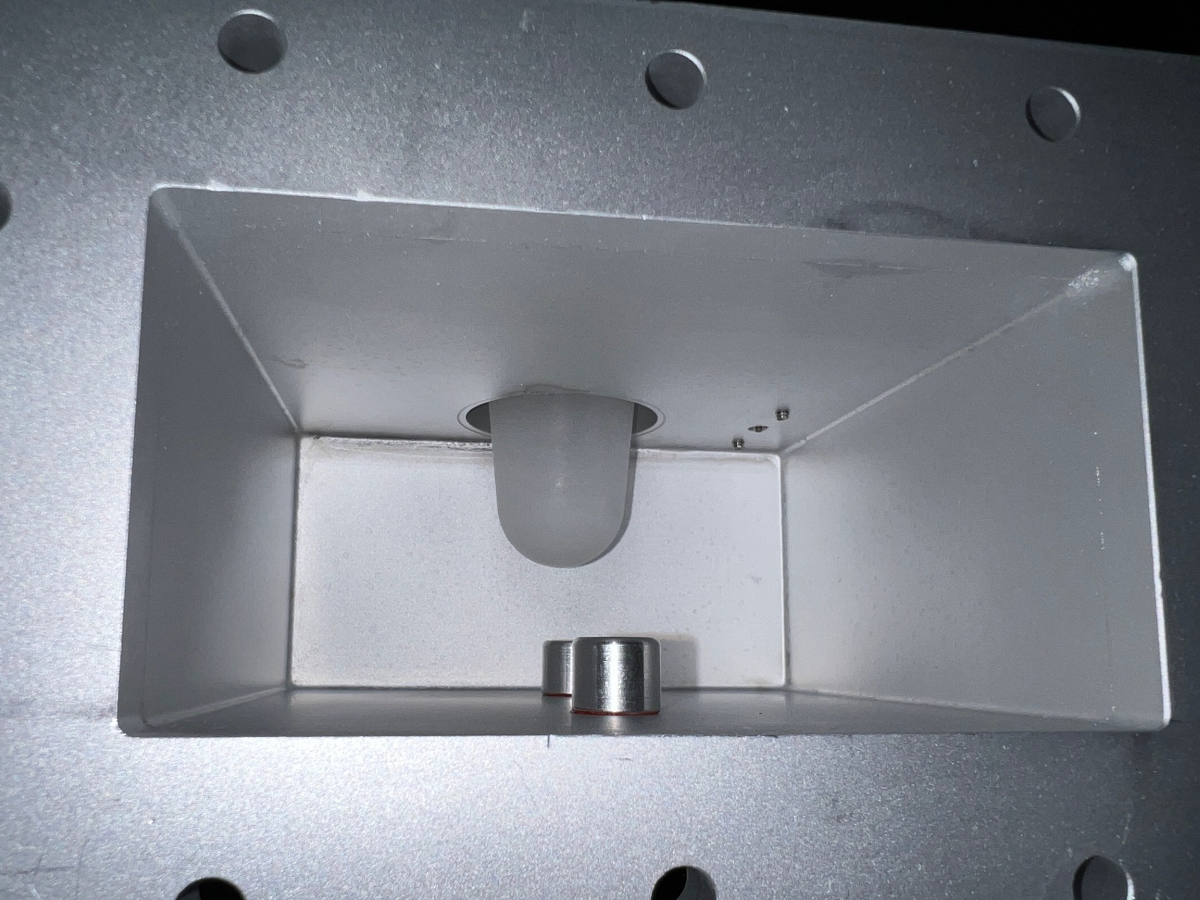

    • Construction: Dip brazed aluminum body, dielectric insert, brass water connections.
    • Finish: Clear chemical film (Alodine).
    • Water Load Function: Cline Innovations assessment suggests that this dummy load is designed to allow microwaves to directly couple with H2O molecules inside the waveguide.
Year of Manufacture 2022
Condition Like New
