ITEM ID: 89761

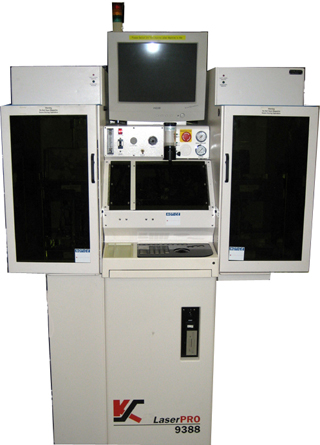

K&S 9388 LaserPro

Automatic Ball Attach System BGA/CSP

1 unit @ Best Price

MAKE: Kulicke & Soffa

MODEL: 9388

CATEGORY: Automatic Ball Bonders

SELLER: Catalyst Equipmt Co

Plano, TX US

SPECS

Manufacturer Kulicke & Soffa
Model 9388
Description Automatic Ball Attach Tool BGA/CSP
Other Information
  • Serial Number DA0201-310006 Date of Mfg: 2000
  • Attaches Solder Balls to Work Surface by Irradiating it with Laser Light
  • Automatic Material Handling System
  • 50mm (X) x 50mm (Y) Placement Area
  • 100,000 Balls Placed Per Process Program
  • 100 – 800 um (dia) Ball Size Range
  • 150 Alignment Points per Process Program
  • 100 Reference Points per Process Program
  • Pattern Recognition System
  • Class 1 Laser System with Embedded Class 4 Laser
  • 915 nm Output Wavelength
  • 40 Watts Maximum Output Power – Class 1 Laser System
  • 8 Watts Maximum Output Power – Embedded Laser Diode (continuous-per diode)
  • 0 to 100 msec Pulse Duration – Programmable in 0.1 msec increments
  • 115V 27 Current(A) 50/60 Hz 1 Phase
Power Requirements 115 V 27.0 A 50/60 Hz 1 Phase
