ITEM ID: 266257

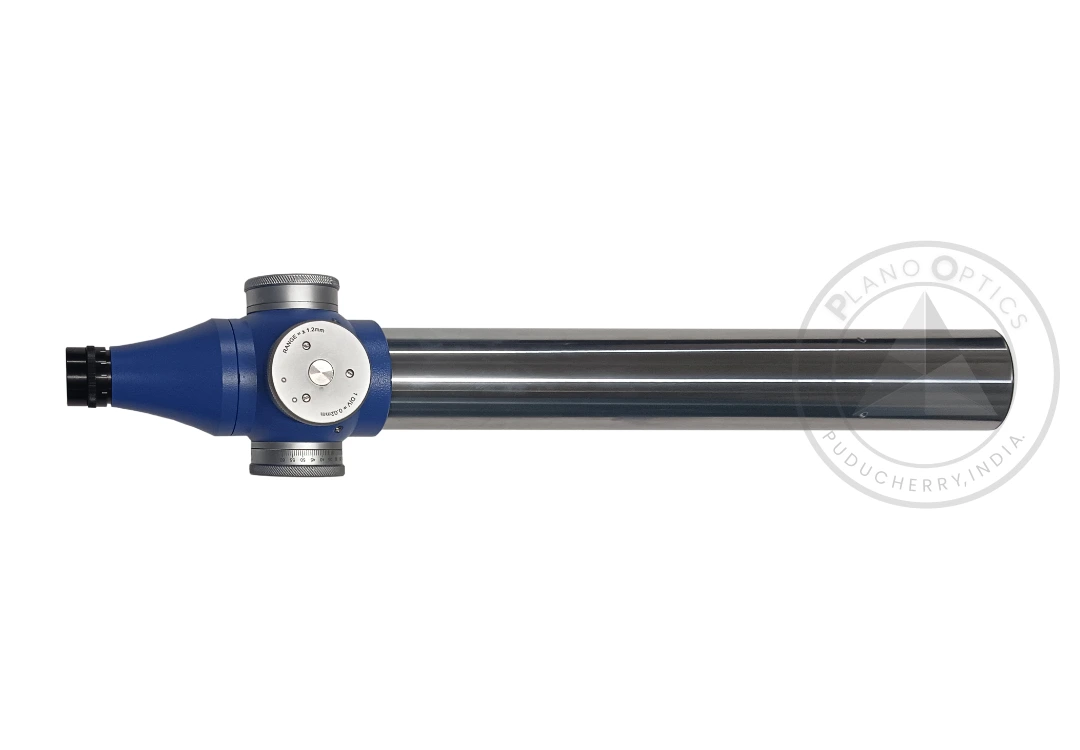

Alignment Telescope | Dual-Axis Micrometer, 20 µm, 43X | Optical Metrology

This Alignment Telescope (2026) is intended for fab managers, process engineers, metrology and equipment technicians, and tool install/move teams who need a straightforward optical metrology tool for alignment verification during commissioning, maintenance, rebuilds, and relocations. Use it to establish and confirm line-of-sight, straightness, and axis alignment as part of standard floor-level setup procedures.

It supports repeatable alignment checks with a dual-axis micrometer readout and is configured for long-baseline work with high-magnification optics and a wide focus range. It can be used in collimation and autocollimation arrangements depending on your process and fixtures. Refer to the Key Specifications tab for the full configuration, and request additional photos and a packing list if you need to verify mounts or included items.

1 unit @ Best Price

MAKE:

MODEL:

CATEGORY: Alignment Telescopes

SELLER: Dynaprice Markets

Puducherry, India

SPECS

Manufacturer Plano Optics
Model Alignment Telescope
Accessories

A Storage/Carrying Case

Dual-Axis Micrometer

Other Information
  • Linear Resolution: 20 microns
  • Readout: Dual Axis Micrometer
  • Linear Measuring Range: ±1.20 mm
  • Linear Measuring Accuracy: ±0.030 mm +2% (displacement)
  • Line of Sight Error:
  • Concentricity of Mechanical axis to Optical Axis: < 10 microns
  • Parallelism of Optical Axis and Barrel: < 5 Secs
  • Image: Erect
  • Magnification: 43X
  • Accuracy of Focus Scale: 10%
  • Clear Aperture: 25 mm
  • Barrel Diameter: 57.147 mm ± 0.010 mm
  • Barrel Length: 350 mm
  • Overall Length: 530 mm
  • Focus Range: 0 mm to Infinity
